5.13.1. Outline

5.13.1. Outline



The Public IO board can be used for interface or configuration with various devices through the digital input and output ports. The basic specification of the board is as follows.



n  Two-way digital input

Photocoupler input: 8 points (1 port)



n  Two-way digital output

Relay contact point output: 8 points (1 port)



n  CAN communication between modules: 1 mbps



n  Scan time: Max. 5 msec

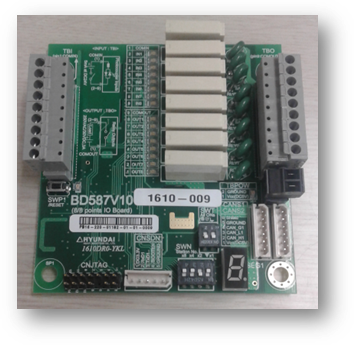

Figure 5.81 Public 8-Point IO Board (BD587)
