5.12.1. Outline​



The main board (BD511) of robot controller is equipped with 2 CAN ports for the system and user. If an additional CAN port is required, a CAN extension board (BD574) can be inserted into the mainboard as a sub module.



l  Support for max 2 extended CAN ports



BD574: CAN 1 port extension for a user

BD574E: CAN 2 port extension for a user

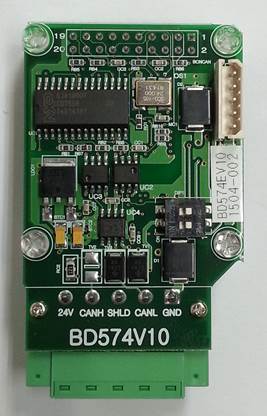

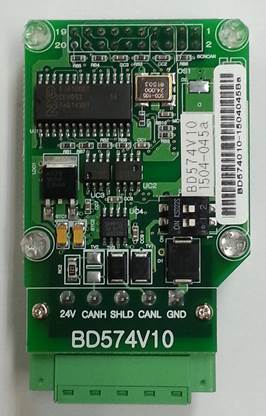

Figure 5.79 Exterior of CAN extension board BD574(left) and BD574E(right)
