2.3. User key

2.3. User key

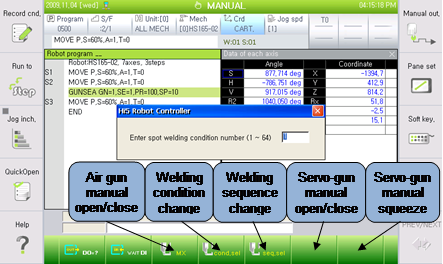

This part describes the user key related to spot welding. Please refer to the operating manual for the Hi5 controller for the method of registering and using the user key.





n Air gun manual open and close

This enables the manual opening and closing of the air gun by displaying the MX signal. [2.4. Manual opening and closing welding gun and squeeze]



n Welding condition change

This enables manual changing of the currently selected welding condition number.



n Welding sequence change

This enables manual changing of the currently selected welding sequence number.



n Servo-gun manual open and close

This enables manual opening and closing of the servo-gun. [2.4. Manual opening and closing welding gun and manual squeeze]



n Servo-gun manual squeeze

This enables manual squeeze of servo-gun. [2.4. Manual opening and closing of welding gun, and manual squeeze]
