2.1. Program Reservation Execution Environment Setting

2.1. Program Reservation Execution Environment Setting

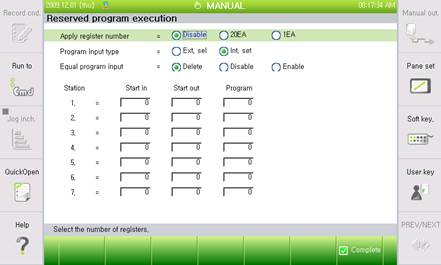

The environment for Program Reservation Execution function is set in 『[F2]: System』 → 『2: Control parameter』 → 『8: Reserved program execution』.





l Apply register number



①    Disable – Program Reservation Execution function is not used.



②    20EA

Create 20 Program Reservation execution registers and register the program in reserved order. When the number exceeds 20, an error will occur.



③    1EA

Create 1 Program Reservation execution register and register only 1 program. Then when the program registered to the register is not executed and another program is registered, the register will replace with a new program.



l Program input type



①    External selection

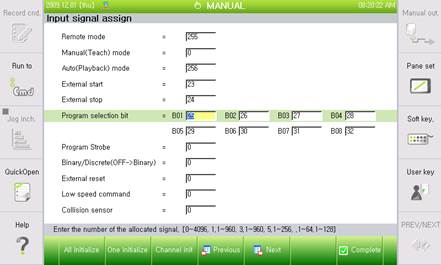

Entered program is registered to Program Reservation Execution Register in 『[F2]: System』 → 『2: Control parameter』 → 『2: Input/Output signal setting』 → 『3: Input signal assign』.





②    Internal setting

When the input signal and the applicable program are pre-designated by the user, and the input signal is turned on, the applicable program will be registered to the Program Reservation Execution Register.



l Equal program input

When registering the program to the Program Reservation Execution Register, it decided how to process when the same program exists in the register.



①    Delete – Deletes existing program.

②    Disable – Do not register.

③    Enable - Register.



l  Start In

Set the signal for each port of the I/O connector installed on the I/O board.



l  Start out

Set the signal for each port of the output connector installed on the I/O board.



l  Program

Set the work program of the applicable workstation.
