1.2.2. Method of Internal Setting

1.2.2. Method of Internal Setting​



If the button on the workstation is pressed when the target workpiece is programmed, the program number applicable to this input is registered to reserve execution register and the program will be executed in this order.

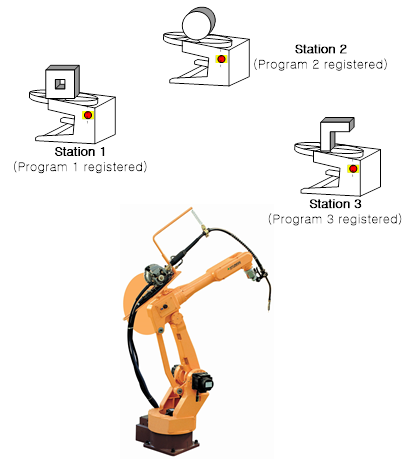

Figure 1.2 Method by internal setting



When each workpiece is set on 3 workstations as shown in the above figure, and the buttons on workstations 1, 2 and 3 are pressed, the programs 1, 2 and 3 are registered to the Program Reservation Execution Register.



When workpiece 1 is prepared and the button pressed, program 1 will be executed when you press the run button on the operating panel. Also when workpiece 2 is prepared and the button is pressed, program 2 will be executed after program 1 is executed.
