2.2. Communication cable

2.2. Communication cable



Cables of CAT5 or higher grade and RJ45 connectors need to be used for connecting the BD525 PROFINET IO board, through a network, with a hub, switches and other PROFINET IO devices. As the BD525 board supports the auto crossover function, direct or crossover connection can be made as necessary.



n When to be connected with a hub or a switch

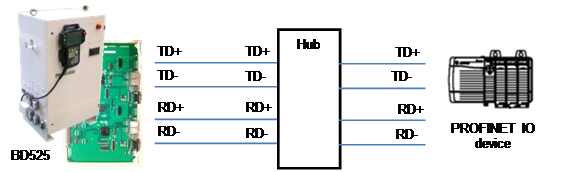

Figure 2.2 Connecting Direct cable

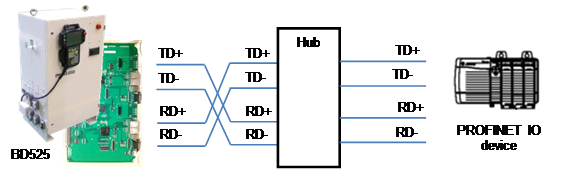

Figure 2.3 Connecting Crossover cable



n When to be directly connected with an PROFINET IO device

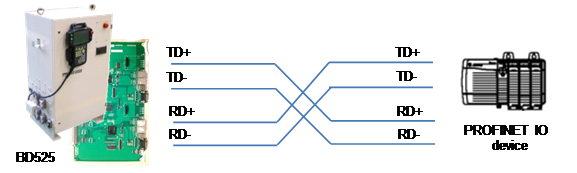

Figure 2.4 Connecting Direct cable

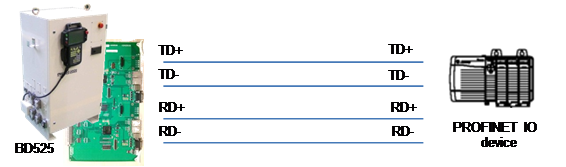

Figure 2.5 Connecting Direct cable



In order to increase noise immunity, it is recommended to use STP (Shielded Twisted Pair) cables. For details of cable wiring, please refer to the PNO installation guide.
