1.2. Formation of the Hi5OLP Package

1.2. Formation of the Hi5OLP Package

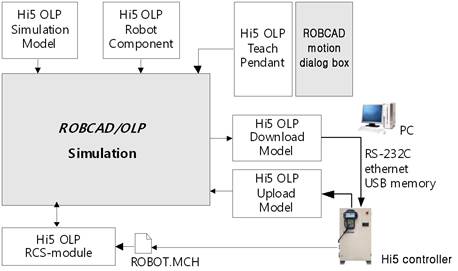

Figure 1.2 Formation of the Hi5 OLP package



The Hi5 OLP package is composed of various components, as shown in [Figure 1.2]. The role of each component is described in [Table 1-2] below.



Table 1‑2 Components of the Hi5 OLP package

Component	Role
Teach Pendant	Input and edit step parameters and function commands for each location
Simulation Model	Define and execute the steps and functions of the Hi5 controller, and simulate robot motion through the same method at the time of simulating robot work
Download Model	Convert robot work that has passed through the simulation, correction and confirmation process into a work program for the Hi5 controller
Upload Model	Convert a work program existing on the Hi5 controller into a path inside of a ROBCAD work cell
Robot Component	Call CAD data of a defined shape and the Kinematic data of a robot to inside of the work cell of ROBCAD, and use it for creating and simulating work
RCS-module	Calculate robot trace when motion operation of the Hi5 controller is simulated
