1.4. Wiring method of RS-232C cable

1.4. Wiring method of RS-232C cable​

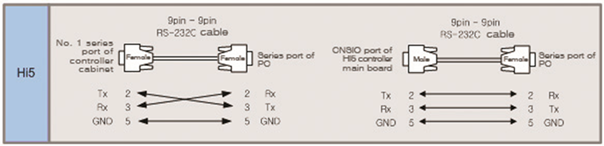

Use RS-232C cable wired as [Figure 1.1]. The picture on the left side shows the connection to cabinet of robot controller and the picture on the right side is the direct connection to the main board.





Figure 1.1 Wiring of RS-232C cable for HRView
