11.1. Preference dialog box

Various options of HRSpace3 can be set in Preference dialog box.

These settings are saved in Windows registry not in documents.

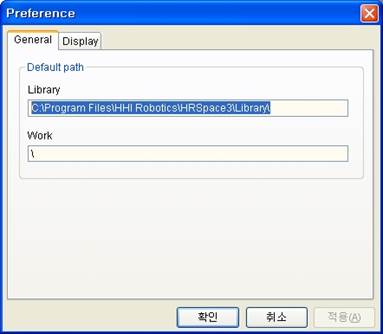

n General - Library

Set a default folder path when you select Import models in popup menu. Basically it is set to HRSpcace3/Library.

n General - Work

Basic location that users’ work will be saved.

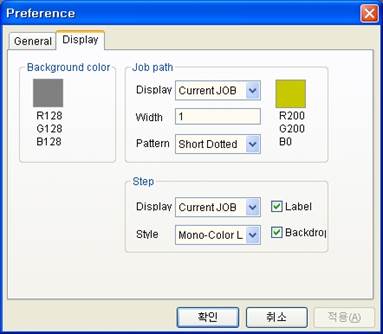

n Display – Background color

Set background color on a 3-D screen.

n Display – Job path

Select how to display a straight path between steps in Job. You can choose color, width, pattern such as solid or dotted line.

l Display method

Hide	Don’t display a path between steps.
Selected JOB	Display a path only to JOB that is selected by clicking in tree window or on a 3-D screen.
Current JOB	Display a path only to JOB that is a current program counter.
All	Display paths in all steps of all Job for all robots. There’re chances that readability get worse and the speed of 3-D display gets poor when the number of steps are too many.

n Display – Step

Determine how to display steps. You can choose the displaying style of step, and whether to show the step label, and background.

l Display method

Hide	Don’t display steps.
Selected JOB	Display a path only to JOB that is selected by clicking in tree window or on a 3-D screen.
Current JOB	Display a path only to JOB that is a current program counter.
All	Display paths between all steps of all Job in all robots. When the number of steps are big, there’re cares that readability and the speed of 3-D display get poor. Display paths in all steps of all Job for all robots. There’re chances that readability get worse and the speed of 3-D display gets poor when the number of steps are too many.

Steps are displayed as an arrow shape if Mono-Color Line is chosen for step style. In this case, the position and direction are as below.
