1.4. Wiring Method of RS-232C Cable

You can upload/download and monitor the ladder file through RS-232C.

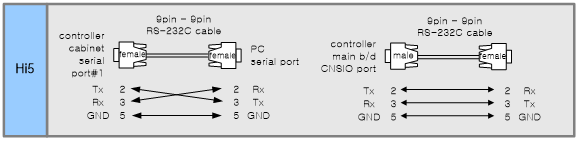

Use the RS-232C cable wired as shown in [Figure 1.1]. Left picture shows the configuration when connected to the cabinet of the controller and the right picture shows the configuration when directly connected to the main board.
