4.4. EtherNet/IP scanner diagnosis



It is possible to use a teach pendant to check the diagnosis information such as communication state, setting state and error information of the EtherNet/IP scanner.



(1)   Select 『[F2]: System』 → 『2: Control parameter』 → 『2: Input/Output signal setting』 → 『14: Real time Ethernet setting and diagnosis』.



(2)   As the EtherNet/IP scanner corresponds to the channel 1. Use the 『[F3]: Previous』or 『[F4]: Next』 key to shift to the channel 1.

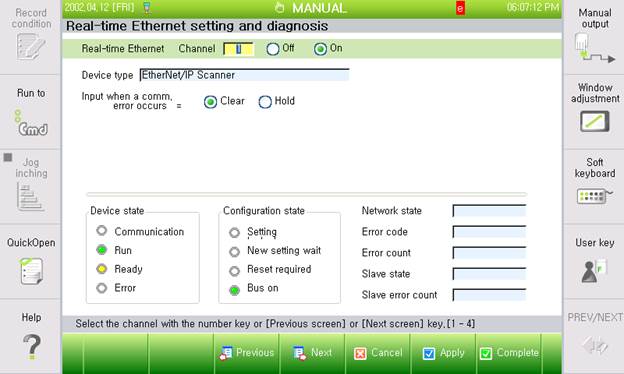

Figure 4.4 EtherNet/IP scanner diagnosis screen



(3)   Can check various information such as system state, setting state and error codes.



n System state



LED	Meaning	Color	State	Remarks
Communication	EtherNet/IP communication state	(Green)	Communication in progress
		(White)	Communication stopped
Run	EtherNet/IP setting state	(Green)	Setting normal
		(White)	Setting abnormal
Ready	EtherNet/IP system state	(Yellow)	System normal
		(White)	System abnormal
Error	EtherNet/IP error state	(Red)	Error generated	Refer to error codes
		(White)	No error



n Setting state



LED	Meaning	Color	State	Remarks
Setting lock	Whether setting is locked	(Green)	Locked
		(White)	Unlocked
New setting ready	Whether new setting is ready	(Green)	Setting ready
		(White)	Setting not ready
Reset needed	Whether system reset is needed	(Green)	Reset needed
		(White)	Reset not needed
Bus on	Whether bus communication is in progress	(Green)	Communication started
		(White)	Communication stopped



n Network state



State	Meaning
Normal	Ethernet communication is in progress normally.
Stopped	Ethernet communication is stopped.
Idle	No communication.
Offline	The network is offline.



n Error codes



Error codes	Meaning
0x00000000	No error
0xC0000145	Ethernet cable connection is poor
0xC0000144	IP address is overlapped
0xC0000142	Connection timeout
0xC0000141	Disconnected
0xC0000140	Other types of network problems
Others	Inquiry to the manufacturers



n Error frequency: Accumulated number of communication errors



n Slave state



Slave state	Meaning
Normal	No error
Error	Communication errors are occurring to more than one EtherNet/IP adapters.



n Number of slaves that have errors: Shows the number of the EtherNet/IP adapters that have communication errors.
