2.3. License of the embedded DeviceNet

2.3. License of the embedded DeviceNet



A license is needed to use the Hi5 embedded DeviceNet. The license can be provided in the following methods.



n Through a BD574 CAN extension board mounted on the BD510 main board

If the BD574 board is installed on the BD510 main board, DeviceNet can be used without the need for entering a license key separately (Refer to Figure 3.1).



n By entering a license key

If a BD574 board is not installed on the BD510 main board, it is required to register a license key separately. Regarding the license key, you can contact our sales department for inquiry.





(1)   Select 『[F2]: System』 → 『2: Control parameter』 → 『10: Register license key of option function』.

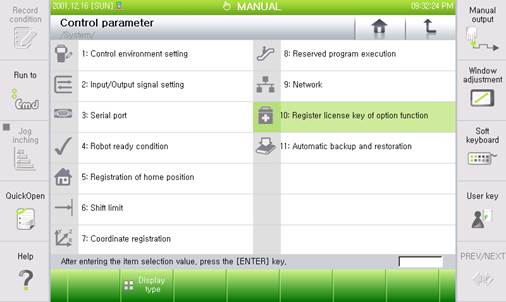

Figure 2.2 Menu for register license key of option function

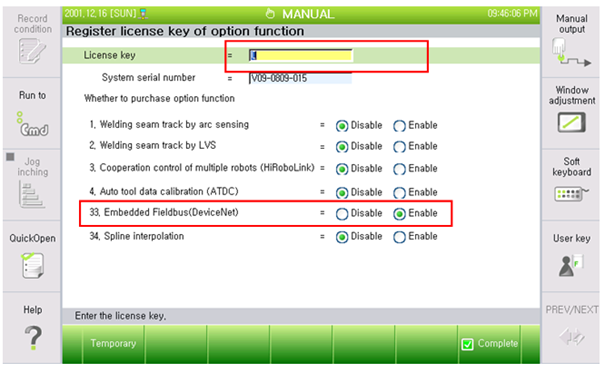

(2)   Set the Embedded Fieldbus (DeviceNet) item to be “Enable”, and enter the license key and then select the 『[F7]: Complete』key.





Figure 2.3 License key registration

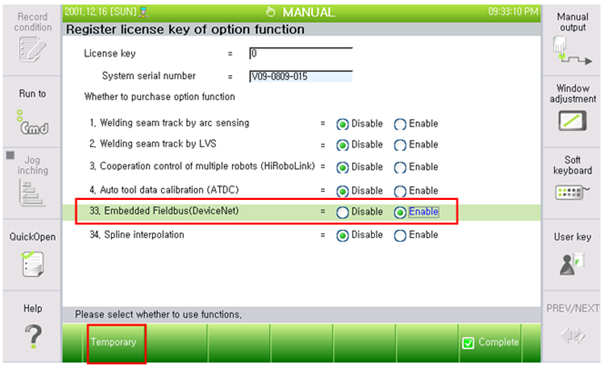

(3)   A temporary license key can be used for one month until an official license key is issued. After setting the Embedded Fieldbus(DeviceNet) to be valid, users need to select 『[F1]: Temporary』. Then the temporary license key will be entered.

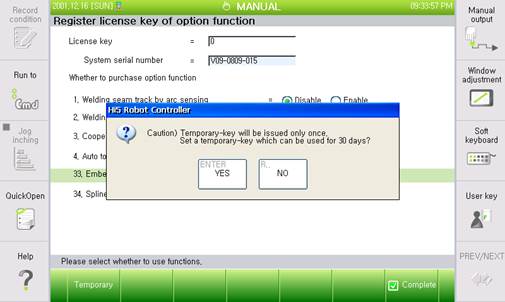

Figure 2.4 Temporary key creation
