5.8.1. Outline

5.8.1. Outline



The Expansion Public DIO board can interface and be configured with various devices through the digital input/output port. The specification of the basic board is as follows.



n 2-way digital input

Photocoupler type input: 64 points (8 ports)



n 2-way digital output

Photo MOS type at 32 points (4 ports)

Relay contact point type at 32 points (4 ports)



n CAN communication between modules: 1Mbps



n Scan time: Maximum of 1msec

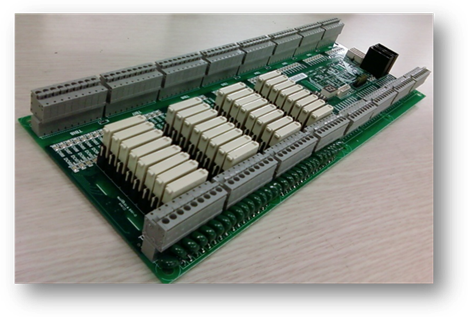

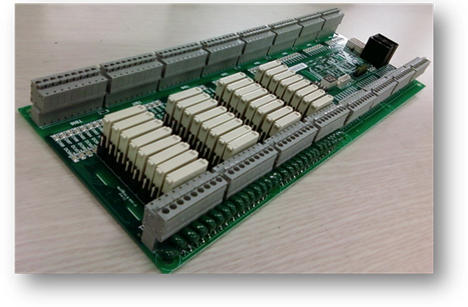

Figure 5.47 Expansion Public IO Board (BD583)
