5.2.1. Outline

5.2.1. Outline



The relay board is the board installed on the public IO board (BD580) to convert the semi-conductor output to contact point output in an 8-point unit.

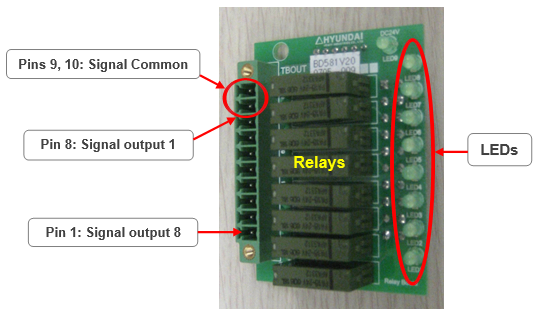

Figure 5.8 Relay Output Board of Public IO Board (BD581)

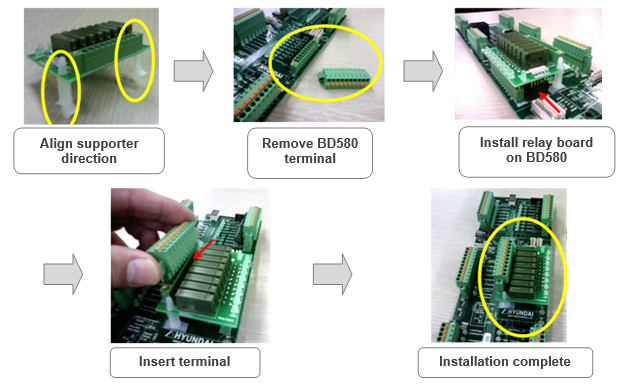

Figure 5.9 Method for the Installation of Relay Board
