5.1.1. Outline

5.1.1. Outline



Public DIO board can be used for interface or configuration with various devices through the digital input/output port. The specification of the basic board is as follows.



l Digital input (Photocoupler type): 32 points (4 ports)

l (+/-) Two-way digital output (Photo MOS type): 32 points (4 ports)

l 1Mbps CAN communication

l When relay contact point is required, the relay board can be installed

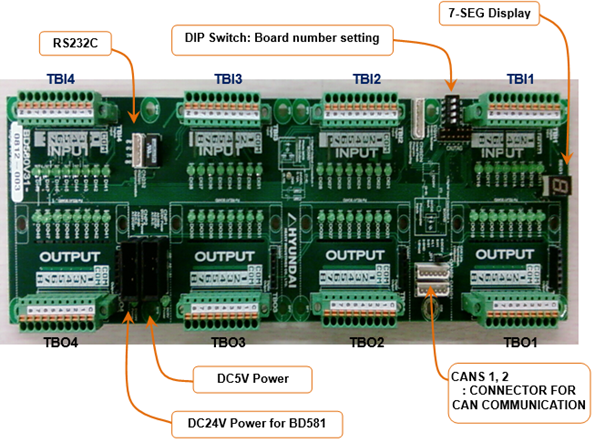

Figure 5.1 Public IO Board (BD580)
